Providing full-lifecycle solutions for digital power.

Wuhan Senmu Leishi Technology Co., Ltd. is a national high-tech enterprise integrating R&D, manufacturing, and sales. The company independently develops PPEC digital power control cores, EasyGo power electronics hardware-in-the-loop simulation products, and high-end digital power supplies, providing full-lifecycle solutions for digital power applications. Senmu Leishi's self-developed PPEC series of digital power control cores fill a domestic gap in this field and have been widely acclaimed since their launch. Following the releases of the "PPEC-86CA3A" phase-shifted full-bridge control chip and the "PPEC-86CA3H" LC series resonant control chip, the company has officially launched the third product in the PPEC series — the "PPEC-86CA3B" LLC resonant converter control chip.

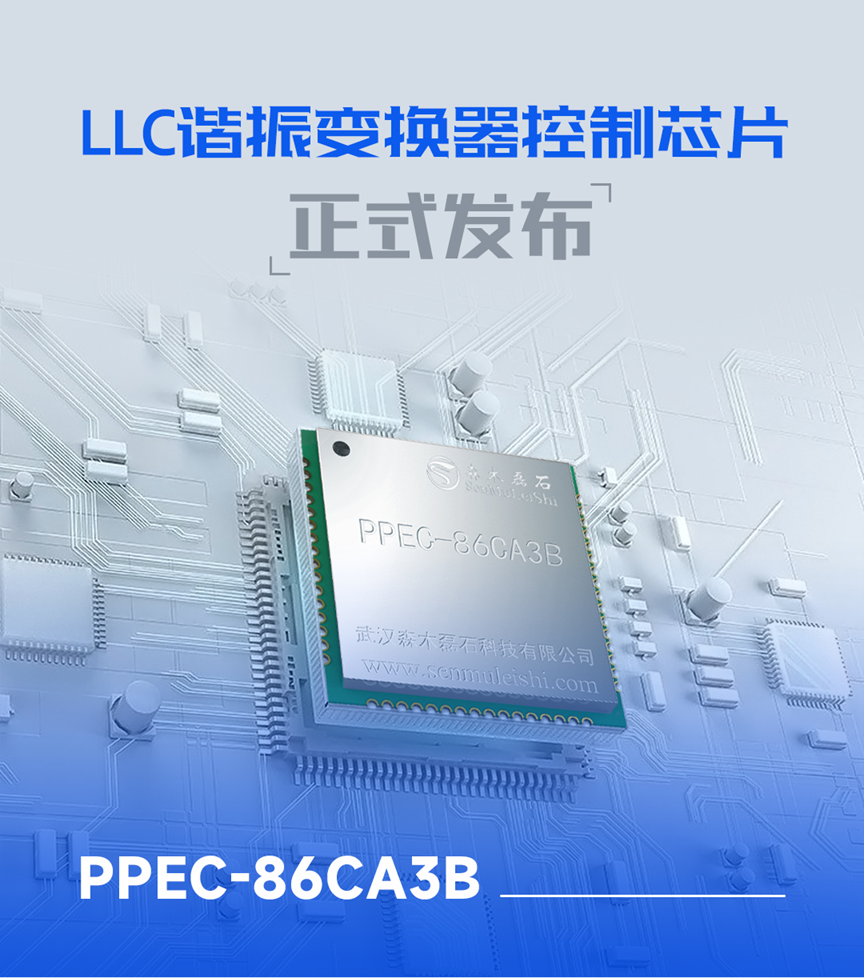

The PPEC-86CA3B is a power control chip specifically designed for LLC resonant converters, providing power supply R&D companies with a stable and reliable high-efficiency isolated DC/DC control solution. The chip inherits the PPEC's code-free programming development advantage, lowering the barrier to power supply development and shortening R&D cycles.

01

Product Highlights

1. Code-Free Programming Development

Using the PPEC-86CA3B chip as the digital control core, users can leverage the PPEC Workbench graphical programming platform to develop high-efficiency, high-power DC/DC power supplies without any coding.

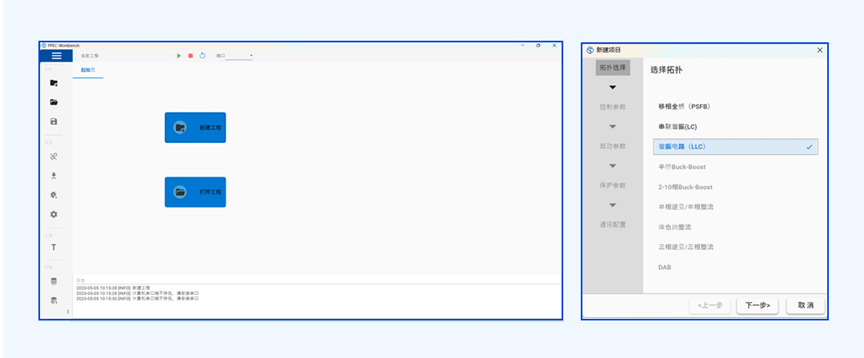

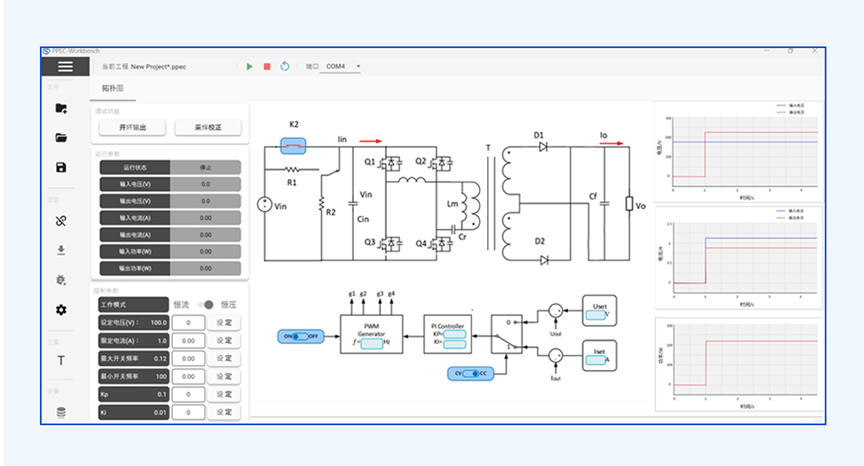

PPEC Workbench provides a graphical human-machine interface that makes power supply R&D simple and efficient. Its features include:

  • Menu-based configuration mode for clear and logical design workflows

  • Online parameter debugging for simple and convenient tuning

  • Virtual instrument display for intuitive parameter observation

  • Built-in power topology calculation tools for parameter computation and component selection

2. Full-Featured and Developer-Friendly

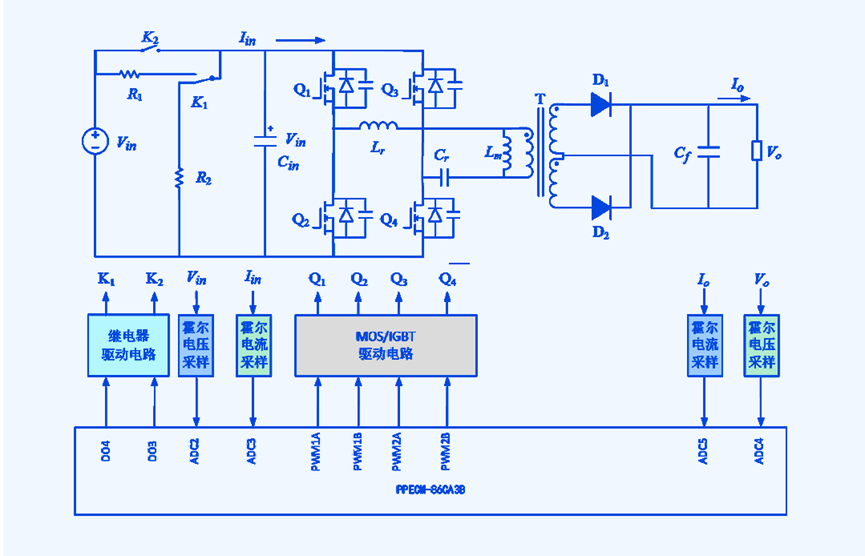

As the control core for LLC resonant converters, the PPEC-86CA3B offers the following capabilities:

  • Seamless switching between constant voltage and constant current modes

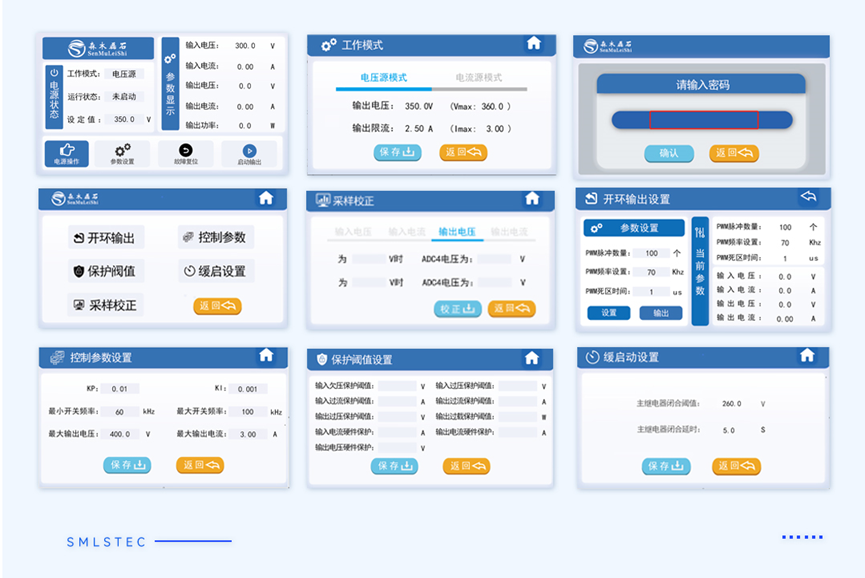

  • Serial screen compatibility for convenient interaction

  • Modbus protocol support for remote control

  • Comprehensive protection mechanisms with adjustable parameter thresholds

  • Built-in pre-charge control circuit

  • Simple and fast sampling channel calibration

  • Open-loop debugging function to accelerate product verification

  • Developer mode with tiered permissions to ensure data security

3. Extensive Documentation Library

The PPEC-86CA3B comes with comprehensive documentation, plus complete reference circuits and design demos to help users quickly complete their circuit designs. The documentation package includes:

  • PPEC-86CA3B LLC Resonant Converter Application Manual V1.0

  • PPEC Workbench User Guide V1.1

  • PPEC-86CA3B Screen User Manual V1.0

  • PPEC Workbench development software

  • Package 3D model V1.0.step

02

Product Applications

The PPEC series can be widely used in DC power supplies, inverters, battery chargers, AC servo systems, UPS, variable frequency drives, and conventional or specialized power supplies.

The PPEC-86CA3B LLC resonant converter control chip offers high efficiency, high power density, high stability, low noise, and compact size — specifically designed for high-efficiency, high-power DC/DC power supply development. It is suitable for data centers, electric vehicles, LED lighting, medical equipment, and other applications.

PPEC (Programmable Power Electronics Controller) is a digital power intelligent core independently developed by Senmu Leishi over more than a decade. It encompasses core power electronics algorithms, covers commonly used topologies, and enables rapid power supply development through code-free programming via the PPEC Workbench graphical programming platform.

To date, the available products in the PPEC series chip lineup include:

  • PPEC-86CA3A phase-shifted full-bridge control chip, providing a stable and reliable isolated DC/DC control solution;

  • PPEC-86CA3H LC series resonant control chip, providing a stable and reliable high-voltage battery charger control solution;

  • PPEC-86CA3B LLC resonant converter control chip, providing a stable and reliable high-efficiency, high-power DC/DC control solution.

03

Product Trial

Senmu Leishi PPEC sincerely invites you to become our product trial user — and not just for new products.

All currently available PPEC series products are free to trial, with comprehensive documentation and video tutorials, plus one-on-one technical support with rapid engineer response.

What are you waiting for? Start your trial now.

Application Channel 1: Follow the WeChat official account [Senmu Leishi], send a private message with [PPEC Trial] to apply immediately.

Application Channel 2: Scan the QR code below to apply.

After successful application, Senmu Leishi will contact you within 2-5 business days. Please keep your contact information open. Wishing you smooth work!
